Jensen JWM22 2-Speaker Zones AM/FM|BT|HDMI|AUX Cube Wall Mount Stereo, Speaker

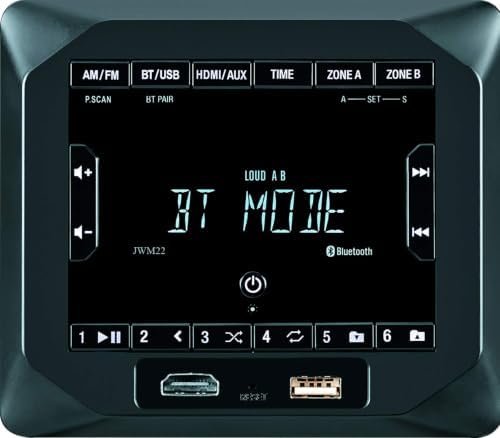

Jensen JWM22 AM/FM/Bluetooth/USB/HDMI/AUX Cube Wall Mount Stereo

The JENSEN JWM22 is our first-ever cube-shaped stereo & is designed to deliver more functionality in a smaller package, ideal for the RV market. This compact stereo supports four speakers with two independent speaker zones to give RVers more control of their audio.

NOTE: We recommend having your Jensen JWM22 installed by a reputable RV dealership

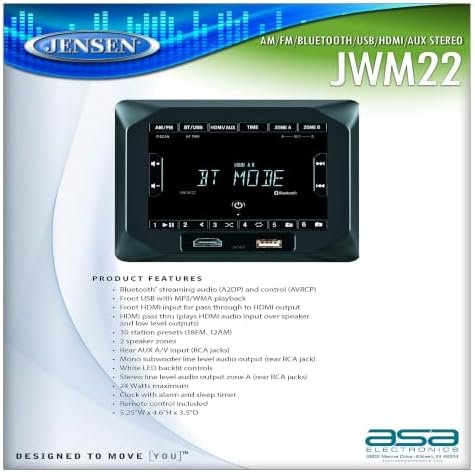

Key Features:
– Bluetooth streaming audio (A2DP) & control (AVRCP)
– Front USB with MP3/WMA playback
– Front HDMI input for pass through to HDMI output
– HDMI Input Pass Through Rear HDMI Output
– HDMI pass thru (plays HDMI audio input over speaker & low level outputs)
– Digital AM/FM Tuner/30 Preset stations (12 AM/18 FM)
– 2 Zones / 4 Speakers Output
– Rear AUX A/V input (RCA jacks)
– Rear AUX Audio Output (RCA)
– Mono subwoofer line level audio output (rear RCA jack)
– Electronic Bass, Treble, Balance & Fader Controls
– White dimmable LED backlit controls
– Stereo line level audio output zone A (rear RCA jacks)
– 24 Watts maximum
– Clock with alarm & sleep timer
– Wireless Remote Control Included
– Radio antenna NOT INCLUDED, Customer will need to purchase the antenna of their choice
– 5.25″W x 4.6″H x 3.5″D

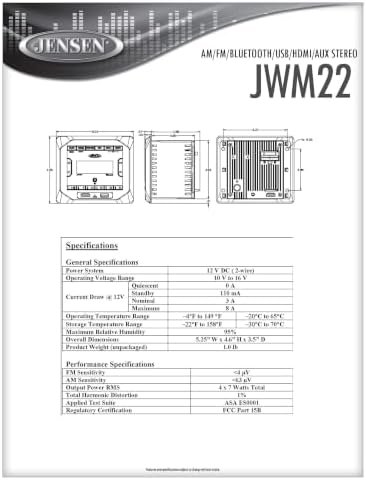

FM Tuner:
– Tuner Range: 87.5-107.9 Mhz
– Sensitivity: Less than 4 uV
– Stereo Separation at 1kHz: More than 25 dB

AM Tuner:
– Tuner Range: 530-1710 kHz
– Sensitivity: Less than 63 uV

Amplifier:
– Output Power: 4x 6 Watts
– Output Impedance: Compatible with 4-8 ohms speakers, 4 ohm load minimum
– Total System Power: 24 Watts Maximum

General:
– Power Supply Requirements: DC 12 Volts, Negative Ground
– Operating Voltage: 10-16 VDC
– Overall Dimensions: 5.25″ (W) x 4.6″ (D) x 3.5″ (H)
– Mounting Dimensions: 96.8mm (W) x 73.8mm (D) x 99.9mm (H)
– Weight: 0.77 pounds
Bluetooth streaming audio (A2DP) and control (AVRCP), Front USB with MP3/WMA playback, Front HDMI input for pass through to HDMI output, HDMI Input Pass Through Rear HDMI Output
HDMI pass thru (plays HDMI audio input over speaker and low level outputs), Digital AM/FM Tuner/30 Preset stations (12 AM/18 FM), 2 Zones / 4 Speakers Output
Rear AUX A/V input (RCA jacks), Rear AUX Audio Output (RCA), Subwoofer Audio Output (RCA), Mono subwoofer line level audio output (rear RCA jack)
Electronic Bass, Treble, Balance and Fader Controls. White dimmable LED backlit controls, Stereo line level audio output zone A (rear RCA jacks), 24 Watts maximum, Clock with alarm and sleep timer
Mounting Dimensions: 96.8mm (W) x 73.8mm (D) x 99.9mm (H). 20-PIN Speaker Wire Harness, Installation Hardware and Wireless Remote Control Included
Radio antenna NOT INCLUDED, Customer will need to purchase the antenna of their choice
